Solar System 280 Watt Solar Panels 140 Watt each hinged - $150 (Paulden)
Hwy 89 near Big Chino Road
condition:
good
make / manufacturer:
KYOCERA
model name / number:
KD140sx-UFBS 140 WATT
size / dimensions:
59.06 x 26.30 x 1.8"
QR Code Link to This Post

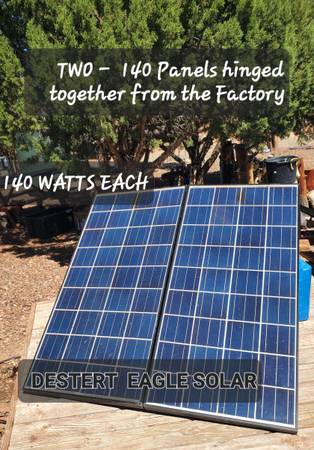

They fold in half for easy transport.
If you need Cheap Panels these aren't for you. Cheap Panels are all over the internet.
EACH PANEL IS 140 WattS OF SOLAR
Attached with Hinge
25 year life @ 80%
Kyocera's KD140SX-UFBS multi crystalline solar panel is a good choice for 12-volt battery systems
Kyocera KD140SX-UFBS - 140 Watt Black Frame Solar Panel
Off Grid Series - 12 V Nominal
Model KD140SX-UFBS
Series KD 140 F SX Series
Manufacturer Kyocera
Mechanical
Type Poly
Dimensions 59.06" x 26.30" x 1.8"
Weight 28.4 lbs
Frame Black Anodized
Connector Junction Box/Wires

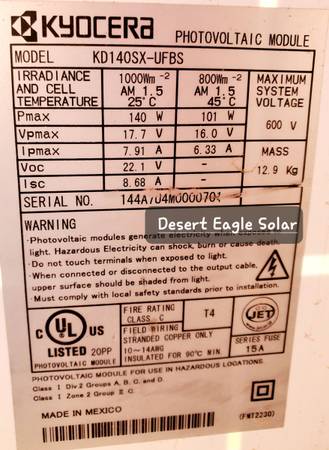

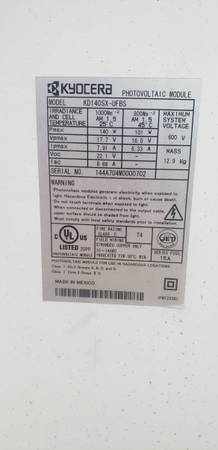

Electrical
Watts (Pmax) 140 W
Watts (STC) 101 W
Max Power Voltage (VMPP) 17.7 V
Max Power Current (IMPP) 7.91 A
Open Circuit Voltage (VOC) 22.1 V
Short Circuit Current (ISC) 8.68 A
Max System Voltage DC 600 V
Documentation
Data Sheet Kyocera KD135F SX Series
processing technology
12 years at 90% output, 25 years at 80% output
These Panels are several years Old
Detailed Information
As a pioneer with over 35 years in the solar energy industry, Kyocera demonstrates leadership in the development of solar energy products. Kyocera’s Kaizen Philosophy, commitment to continuous improvement, is shown by repeatedly achieving world record cell efficiencies.
Built-In Quality for Off-Grid Applications
Proven Superior Field Performance
Tight Power Tolerance
Originally had a Year Warranty
UV stabilized, aesthetically pleasing black anodized frame
Supported by all major mounting structure manufacturers
Easily accessible grounding points on all four corners for fast installation
Proven junction box technology
Kyocera modules confirmed by the Desert Knowledge Australia Solar Centre to have the highest average output of any crystalline module
First module manufacturer in the world to pass longterm sequential testing performed by TÜV Rheinland
This series construction also passed TÜV Rheinland’s Salt Mist Corrosion Test at Severity Level 6, the most intense test conditions available
Only module manufacturer to achieve the rank of “Performance Leader” in all six categories of GTM Research’s 2014 PV Module Reliability Scorecard
